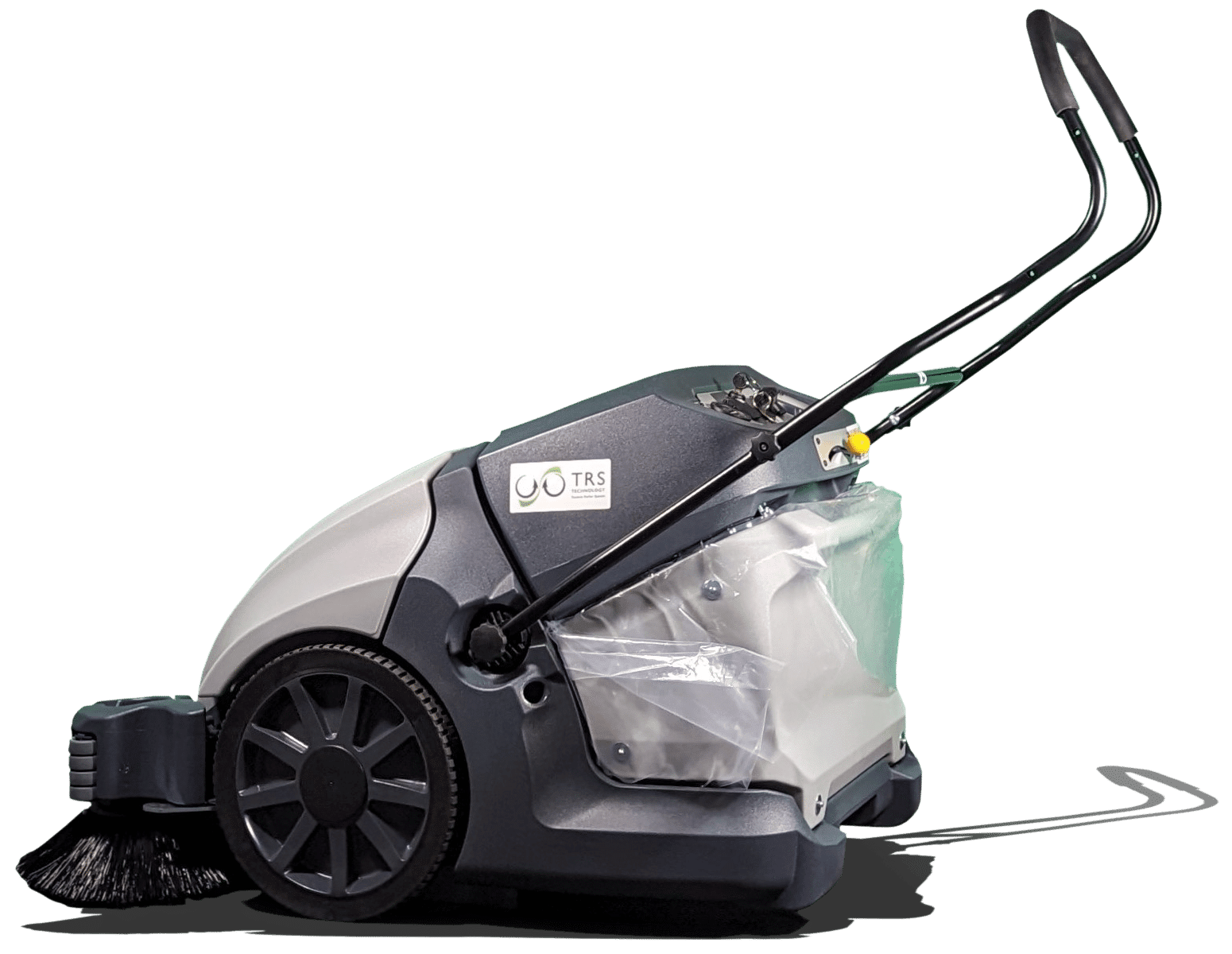

TOPFLOOR TF95-TRS Vacuum-Sweeper with Bag-In-Bin System
A rugged pedestrian vacuum-sweeper with world-first, patent-pending dust containment technology specifically designed for construction sites and other high-dust applications – the Bag-In-Bin system. Reducing exposure to harmful respirable dusts when emptying the hopper, using a fully sealable solution to protect the long-term health of operators.
DESCRIPTION
Pedestrian Vacuum-Sweeper – TopFloor TF95-TRS with Bag-In-Bin System
Complimenting an already proven industrial cleaning machine for serious sweeping applications, we have a unique dust containment system to reduce exposure to harmful dusts while emptying the dirt container.
Read how we came up with a world-first solution in our blog post here.
The patent-pending Bag-In-Bin system allows for all of the debris to be contained in a robust bag, fully sealed off using the supplied cable ties and safely disposed of without any high volumes of dust being created, which is typical when emptying a vacuum-sweeper.
Exposure to harmful respirable dust continues to be an issue directly related to the long-term health of operators – with the Bag-In-Bin system, we’ve eliminated the peak levels of exposure when cleaning, to Create Clean on your site and Protect the Health of your workforce.
Arguably unmatched in hand-operated sweeper performance, this popular vacuum-sweeper machine becomes an indispensable working tool for all areas in which maximum performance is required and great results are achieved: construction sites, brickworks, foundries and other high-dust applications.
The extremely powerful dust extraction of this vacuum sweeper, combined with the technically sophisticated tandem roller system and unique Bag-In-Bin dust containment technology makes the TF95-TRS a sweeper for the optimal removal of fine and coarse dirt in the professional sector – quickly, thoroughly and easily.
The mechanical filter developed for the TF95-TRS sweeper even cleans deep rib areas reliably and eliminates up to 45% more dust from the filter ribs than conventional cleaning mechanisms, ensuring the dirt, debris and dust are all collected and contained, and trapped, and prevented from escaping into the air, or on the ground again.
SPECIFICATION
| TECHNICAL INFORMATION | TF95-TRS with Bag-In-Bin System |
| Power Supply | Battery |
| Theoretical Productivity (m2/hr) | 3,600 / 4,400 |
| Main Broom Width (mm) | 500 |
| Total Sweep Width (mm) | 900 / 1,100 |
| Hopper Capacity (ltr) | 75 |
| Filter Area (m2) | 2.5 |
| Airflow Volume (m3/hr) | 450 |
| Dimensions – L x W x H (mm) | 1095 x 820 x 1200 |
| Weight (kg) | 114 (with Battery) |
FEATURES & BENEFITS
• Unique, patent-pending Bag-In-Bin system to reduce exposure to harmful respirable dust while emptying the machine’s dirt container.
• The 2.5m2 filter and high airflow volume deliver outstanding dust control in the harshest of environments for perfect sweeping results each time, every time.
• The laser cut metal chassis, chain driven dust sweeping mechanism and geared side brush drive all form the tougher construction for industrial environments.
• Fast access to main brooms and side brushes make inspection and servicing simple.

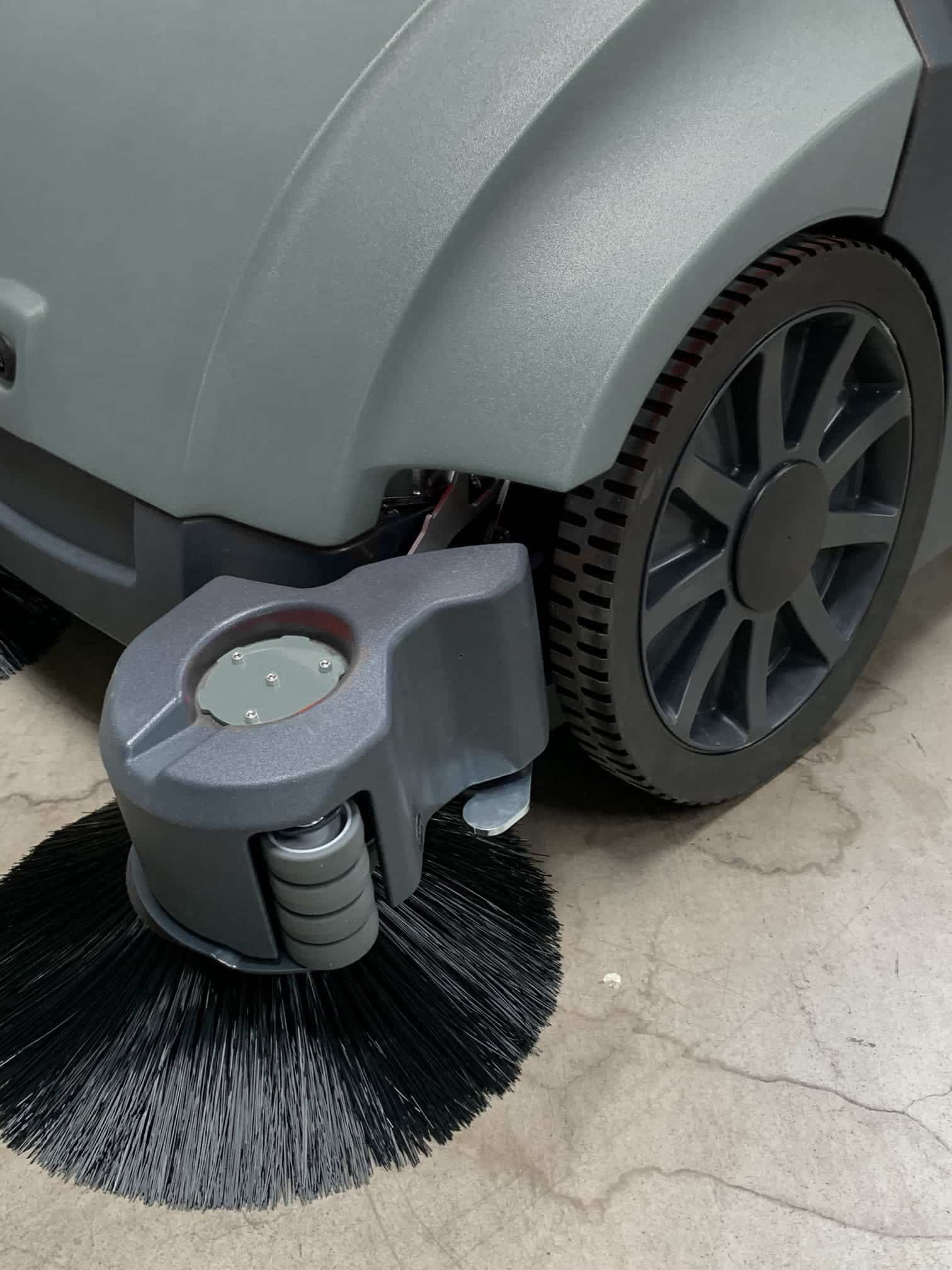

• Unique TRS (Tandem Roller Sweep) system utilises two centre brooms to grab up debris from the floor, delivering double the sweeping power of alternative machines.
• Clear and logical operator controls minimize training requirements and enhance operator confidence.
• Forwards and reverse drive for easier operation even on inclines or rough terrain.
MEDIA
DOWNLOADS
APPLICATION
Construction
Foundries, Brickworks
Heavy Industry
Automotive
