TOPFLOOR TF110R-TRS HD Ride-On Sweeper
Ride-on vacuum sweeper with high dump hopper for cleaning floors in warehouses, construction sites and factory floors. Twin Roller Sweep system delivers double cleaning power and hydraulic hopper dump makes for easy emptying.
Please see 3 product videos below and further video of TF110R HD hopper dump model and the close sweep to a kerb it performs here:
DESCRIPTION
Ride-On Sweeper With High Dump Hopper – TopFloor TF110R-TRS HD
A compelling combination of durability, outstanding sweeping results, a hydraulic high dump hopper and dust control makes the TF110R-TRS ride on sweeper the preferred choice for construction sites, building material manufacturers, distribution hubs and other demanding applications.

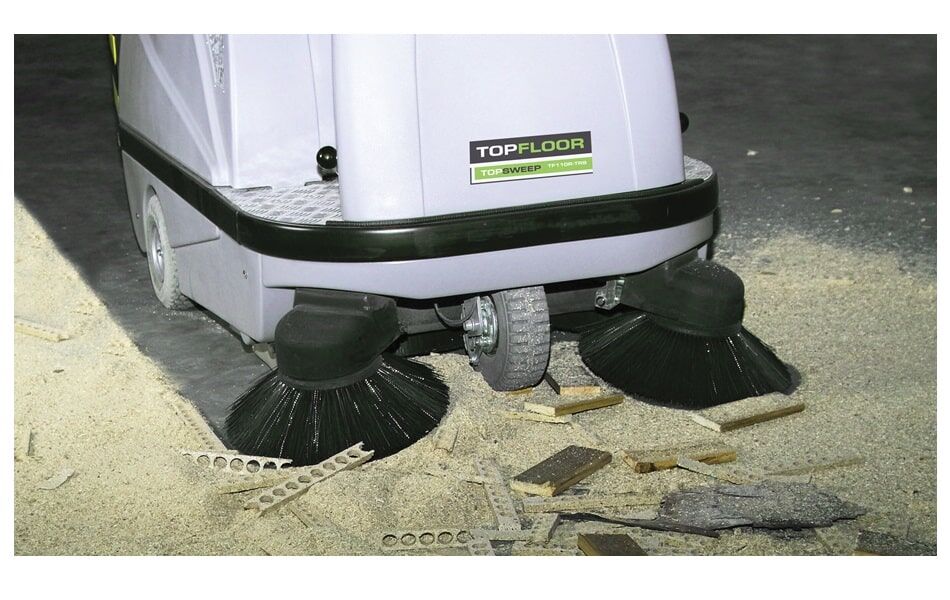

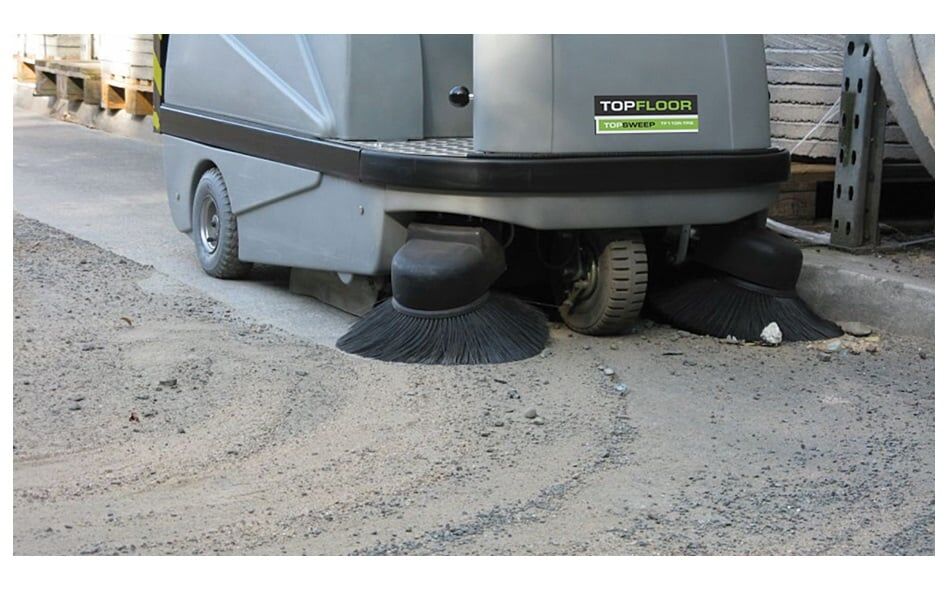

• Spring loaded side brushes retract behind the chassis on impact with objects such as racking or walls to protect from damage.
• Foam filled non-marking tyres give operators a smooth and more comfortable ride even on rough terrain whilst retaining the puncture resistant attributes of solid wheels.
• Up to 5 hours operation on a single charge.
• Clear control layout with individually operated functions minimise training requirements and resettable fuses protect motors from overload.
• Fast and easy no-tools access to main brooms, side brushes, filters and main components for reduced servicing downtime.
• Main broom and side broom height adjustment to compensate for wear.
• Powerful climbing ability means the TF110R-TRS HD can tackle inclines of up to 20%.
• Chain drive sweeping (rather than belt drive) reduces maintenance requirements and maximises power transmission.
• Each TF110R-TRS HD is delivered with a flashing beacon, back up alarm, horn, steering knob and non-marking tyres as standard, so that it’s ready to roll in industrial applications.
• The TF110R-TRS HD carries all the traits of a true Topfloor sweeper; powerful suction, straightforward operation and precision engineering.
• Available as Battery / Petrol / LPG powered floor sweeping machine with TRS *Double Sweep Power* and hydraulic high dump hopper.
SPECIFICATION
| TECHNICAL INFORMATION | TF110R-TRS HD |
| Power Supply |
Battery / LPG / Petrol
|
| Theoretical Productivity (m2/hr) | 6,600 |
| Main Broom Width (mm) | 700 |
| Total Sweep Width (mm) | 1,100 |
| Hopper Capacity (ltr) | 90 |
| Filter Area (m2) | 4 |
| Airflow Volume (m3/hr) | 900 |
| Max Speed (km/h) | 6 |
| Turning Circle (m) | 1.2 |
| Dimensions – L x W x H (mm) | 1145 x 900 x 1165 |
| Weight – incl Battery (kg) | 331 / 230 / 260 |
FEATURES & BENEFITS
To personalize your Top floor sweeper, a range of additional options are available:
• Side broom speed control to further reduce the airborne dust being whirled up..
• Hydraulic high-dump hopper reaches up to 130cm for easy emptying into an industrial bin.
• Battery, LPG and petrol variants for fume free operation or constant running depending on your specific needs.
• Retractable 3rd and 4th side broom arms for sweeping small raised kerbs or increasing the overall sweep path.
• On-board vacuum for cleaning between pallets, racking overhead and other surfaces in areas with no power supply.
• Carpet kit for sweeping dust and debris from large carpeted areas quickly and effectively.
For specific requirements, Top floor machines can be bespoke built. To explore these options, simply contact us.
MEDIA
TF110R-TRS-HD TOPFLOOR RIDE-ON SWEEPER
WATCH THE TF110R-TRS-HD RIDE-ON SWEEPER IN-ACTION
DOWNLOADS
TF110R-TRS HD Quick-Start Guide
APPLICATION
