Nilfisk CR1500 Sweeper And Scrubber-Dryer Machine
CR1500 supplies the perfect solution, when the demand is for a machine capable of really heavy-duty industrial cleaning applications. With an all steel construction and wrap around bumpers, king-sized tanks and hopper, and a powerful 3-litre engine, this combination machine is built to perform under the toughest of conditions. The machines cleaning power is enhanced by disc brushes and a hydraulic system that provides a scrub brush pressure of 272 kg on the floor. The real performance capability of CR1500 provides outstanding results and impressive productivity gains that quickly repay investment costs. When cleaning conditions are severe, nothing compares with the strength, power, and reliability of CR1500.
DESCRIPTION
When the demand is for a machine capable of really heavy-duty industrial cleaning application, CR1500 supplies the answer.
With an all steel construction and wrap around bumpers, king-sized tanks and hopper, and a powerful 3-litre engine, this combination machine is built to perform under the toughest of conditions. The machines cleaning power is enhanced by disc brushes and a hydraulic system that provides a scrub brush pressure of 272 kg on the floor. The real performance capability of CR1500 provides outstanding results and impressive productivity gains that quickly repay investment costs. When cleaning conditions are severe, nothing compares with the strength, power, and reliability of CR1500.
Power cleaning in demanding applications:
• Wide scrubbing area (137 cm), a sweeping width of 152 cm, 9 km/h working speed, plus 380 litres capacity solution and recovery tanks provide high productivity

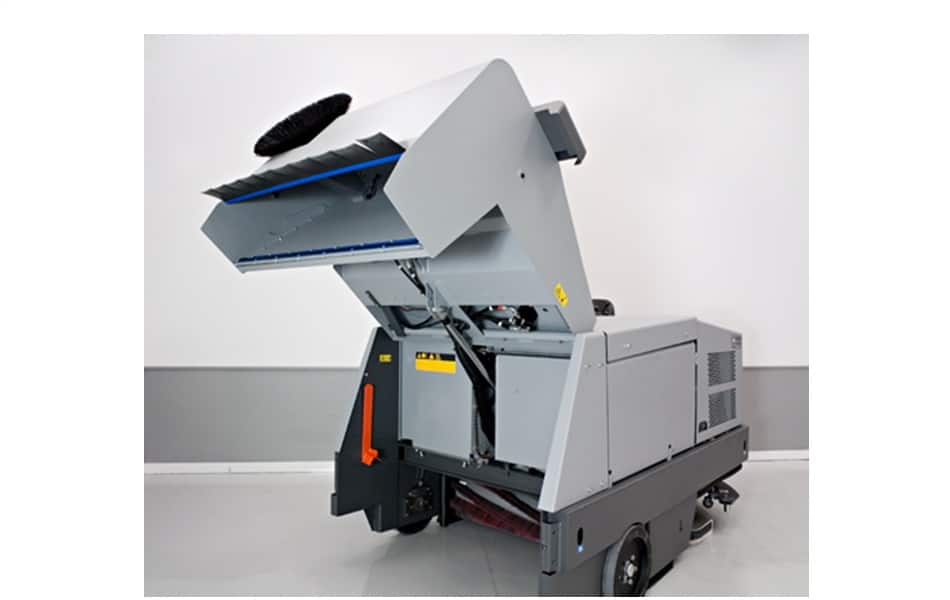

• Huge hopper with 454 litre capacity provides increased operational time, and a dump height of 152 cm for emptying into any container
• Oil and grease is removed in one pass thanks to 272 kg scrubbing pressure
• Power steering for improved ergonomics
• Adjustable scrubbing pressure provides first class cleaning regardless of dirt level or floor condition
SPECIFICATION
| TECHNICAL INFORMATION | CR1500 |
| Length x width x height (mm) | 2720 x 1500 x 1560 |
| Motor power source | Diesel |
| Motor type | 4 cyl, 47.3HP, 2.5L |
|
Max speed (km/h)
|
9 |
|
Airflow (l/sec)
|
71 |
|
Vacuum (kPa)
|
8.0 |
|
Sound level
|
86.1
|
| Productivity rate theoretical/ actual (m²/h) | 12330/8630 |
|
Sweeping width (mm)
|
1520
|
|
Scrubbing width (mm)
|
1370
|
|
Min. turn-around aisle width (cm)
|
305
|
|
Max climbing rate (%)
|
14 |
|
Water flow (l/m)
|
0-13.6
|
|
Fuel tank (l)
|
35 |
|
Solution/recovery tank (l)
|
380/380
|
| Hopper volume (l) |
454
|
| Max. dumping height (cm) |
152
|
| Main filter area (m²) |
9.9
|
|
Squeegee width (mm)
|
1370
|
|
Brush/pad diameter (mm)
|
460 |
|
Brush pressure (kg)
|
200 |
|
Brush speed (rpm)
|
272 |
|
Main broom (mm)
|
36×1067 |
|
Side broom diameter (mm)
|
1×610 |
|
Net weight (kg)
|
1973 |
|
Gross weight (gvw) (kg)
|
2353 |
|
No tools brush adjustment
|
✔ |
|
Adjustable steering and seat
|
Not applicable |
|
Disc brush version
|
✔ |
|
Tip out recovery tank
|
✔ |
|
Automatic brush shut off
|
✔ |
| Automatic solution shut off | ✔ |
| Automatic squeegee lift in reverse | ✔ |
|
Panel filter with shaker
|
✔ |
|
Back up warning alarm
|
✔ |
|
Rear bumber
|
✔ |
|
Power steering
|
✔ |
|
Stainless steel container
|
✔ |
|
Direct throw sweeping
|
✔ |
|
Variable high dump system
|
✔ |
FEATURES & BENEFITS
Power cleaning in demanding applications.
• Wide scrubbing area (137 cm), a sweeping width of 152 cm, 9 km/h working speed, plus 380 litres capacity solution and recovery tanks provide high productivity
• Adjustable scrubbing pressure provides first class cleaning regardless of dirt level or floor condition
• Power steering for improved ergonomics
• Oil and grease is removed in one pass thanks to 272 kg scrubbing pressure
• Huge hopper with 454 litre capacity provides increased operational time, and a dump height of 152 cm for emptying into any container
