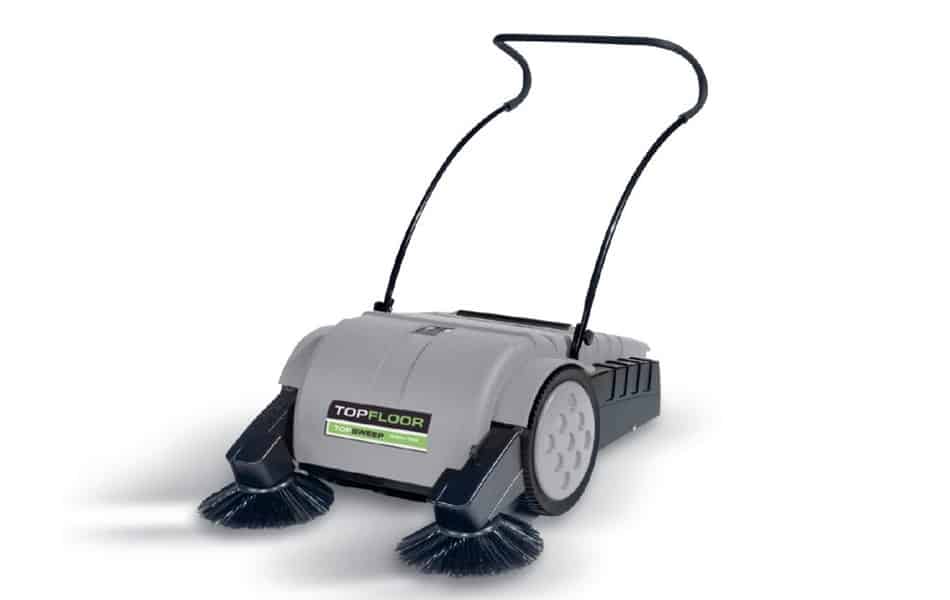

TOPFLOOR TF90VB-TRS Walk-Behind Sweeper
This walk behind sweeper is a robust battery powered model for many demanding areas of use, equipped with the renowned roller dustpan technology and a direct sweeper. This smooth-running machine can be used from the carpark to the warehouse, interior spaces, and sandy surfaces. The TopFloor TF90VB-TRS walk behind sweeper is the optimal device with battery, dust extraction and brush drive for all surfaces indoors and outdoors, even on carpet. See a video demonstration.
DESCRIPTION
Superior sweeping, simpler operation and a more affordable machine are all clear attributes of the TF90VB-TRS walk behind sweeper which is available in 4 different configurations to meet individual requirements in warehouses, production areas, office carpet sweeping and many other applications.

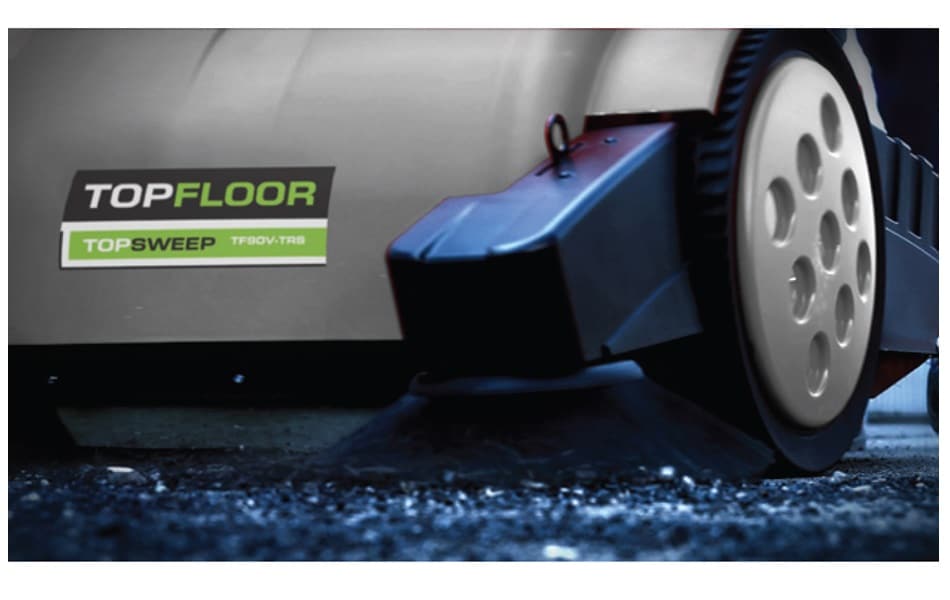

• Large driving wheels and intelligent weight distribution require minimal effort to operate even in congested floor spaces.
• Available in manual or battery powered variants with optional dust control for configuration to your specific requirement.

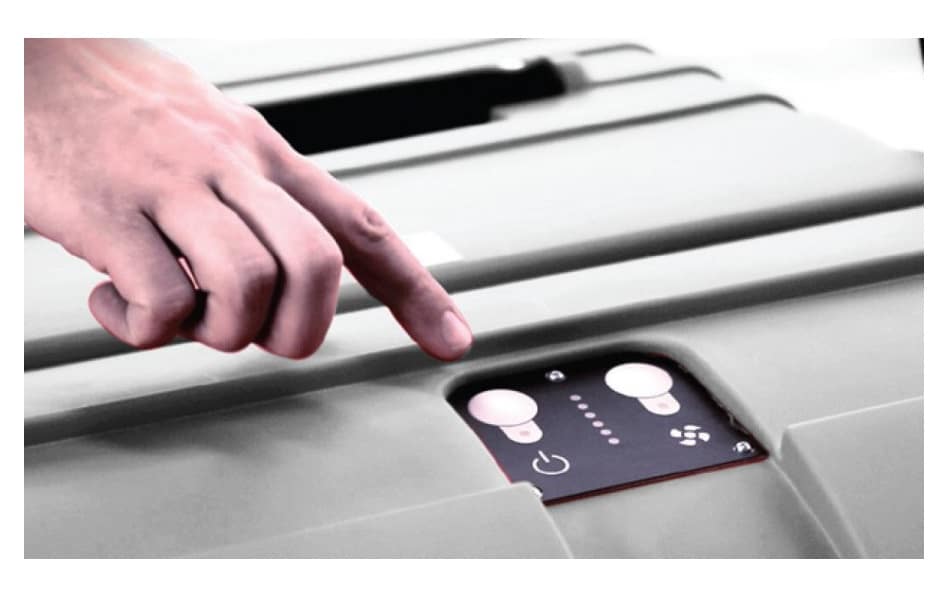

• Simple operator layout and service requirements keep ownership costs low.
• 1.3m2 polyester filter reduces or eliminates the airborne dust.
• Tool free broom height adjustments, filter removal and maintenance free batteries cut machine down time for servicing.
Right from the word go, the TF90-TRS has added a completely fresh dimension to walk behind sweepers. TRS sweeping innovation and optional dust control delivers an unrivaled cleaning result time and again.
SPECIFICATION
| TECHNICAL INFORMATION | TF90-TRS |
| Sweeping System | TRS (Tandem Roller System) |
| Power Supply | Battery (12v) / Manual |
| Runtime | up to 2 Hours |
| Motorised Sweeping Roller Drive | Yes |
| Theoretical Productivity (m2/hr) | 3,150 |
| Actual Productivity (m2/hr) | 1,890 |
| Main Broom Width (mm) | 500 |
| Total Sweep Width (mm) | 900 |
| Hopper Capacity (ltr) | 50 |
| Filter Area (m2) | 1.3 |
| Dust Extraction | Yes |
| Airflow Volume (m3/hr) | 200 |
| Net Cleaning Surface Area (m2) | 2000 |
| Power Transmission | Chain |
| Dimensions – L x W x H (mm) | 1,091 x 760 x 416 |
| Weight – incl Battery (kg) | 46 |
FEATURES & BENEFITS
The TF90-TRS is a robust sweeper for various demanding applications, equipped with the well-known single-roller dustpan technology (also direct sweepers). The smooth-running machine can be used according to requirements from the parking lot to warehouses, interior spaces and sandy areas. The TF90-TRS with battery, dust extraction and brush drive is the best choice for indoor and outdoor surfaces, even on carpet.
Flexibility and comfort are the basic principles of the modular system. Therefore, three of the variants can be extended as conditions change.
The TF90-TRS sweeper unites the innovative concept of the modular system with all the benefits of the unique TRS principle. The tandem scooter sweepers remove debris from the dust grain to the beverage can very thoroughly. In a single operation, two brush rolls rotating against each other convey the debris in a throw-over principle into the waste container.
• 12v battery drive for dust extraction and brush drive
• Suitable for outside and inside
• Also can be used on carpet
• Tandem Roller System (TRS)
• Maintenance-free chain drive
• Dust extraction
• Maintenance-free battery
• Impact-resistant plastic
MEDIA
TF90VB-TRS WALK-BEHIND SWEEPER- PRODUCT VIDEO
DOWNLOADS
TF90-TRS Quick-Start Guide
APPLICATION
