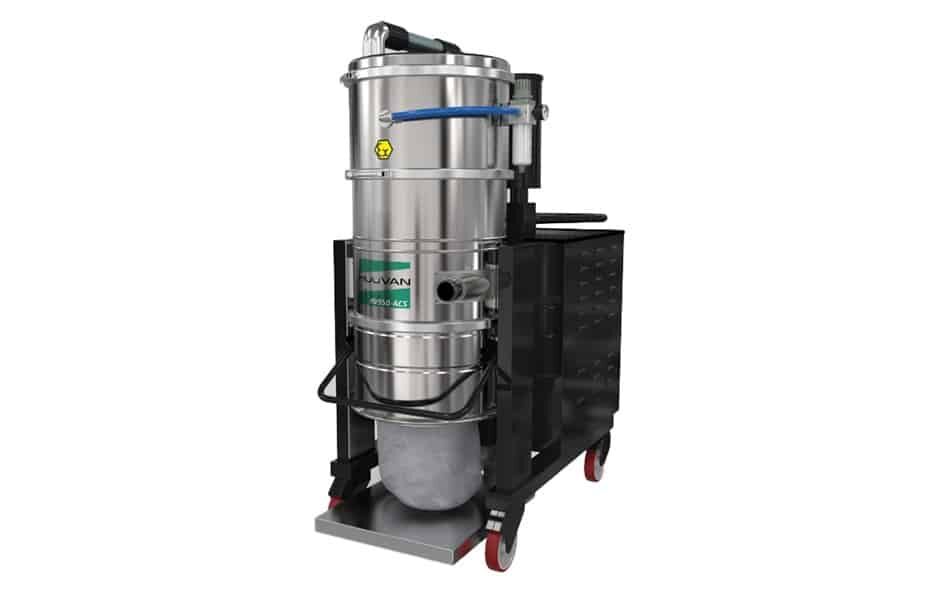

HUUVAN HV550-ACS (B/Z2-22) 400 Volt, H Class, Atex Rated Industrial Vacuum Cleaner

A robust industrial vacuum cleaner with ATEX approval, the HV550 model from Huuvan has high waste capacity and rugged build-quality and 3-phase power for effortless handling of silica dust, large particles and metal filings to make keeping your factory clean both easier and quicker.

SKU: HV550-ACS (B/Z2-22) Categories: ATEX rated Industrial Vacuum Cleaners, Industrial Vacuum Cleaners

DESCRIPTION

• Ergonomic and industrial design includes a complete cover for the side channel blowers protecting them from damage and reducing exhaust air movement.
• Whether you need high air speed or high air flow, 90mm, 70mm or 50mm accessories are available for different applications.
• Available in parallel configuration for higher airflow or series configuration for better suction of heavy materials or for longer distance cleaning.
• Operate the machine as a stand-alone vacuum, or connect it to a fixed cleaning system for added flexibility.

What is Atex?
ATEX Legislation:

An acronym for Atmosphere Explosive, the Atex Directive which became law in 2006 stipulates that areas where potentially explosive atmospheres could be present must be classified on the frequency and nature of the explosive atmosphere:

Frequency	Potentially explosive atmosphere composition
		Gas	Dust
	Permanent	Zone 0	Zone 20
	Occasional	Zone 1	Zone 21
	Infrequent	Zone 2	Zone 22

SPECIFICATION

Voltage	400V + 230V 50/60Hz
Filter Shaker System	ACS (Auto Clean System)
Filter Class	H Class / HEPA
Filter Efficiency	99.995 %
Max Depression	Series Version: 320 mBar Parallel Version: 320 mBar
Depression Valve Regulation	Series Version: 460 mBar Parallel Version: 260 mBar
Air Flow	Series Version: 380 m3/h Parallel Version: 560 m3/h
Power	5.2 Kw
Atex Certified	Zone 2 & 22
Atex Rating	II 3GD EEx nA II T4 135°C IP65
Container Capacity (Ltrs)	Longopac Bag System
Dimensions (Cm)	115 x 65 x H160
Weight (Kg)	222

FEATURES & BENEFITS

HEPA filter

HEPA H-class filtration collects submicron dusts at 99.995% efficiency, protecting the workforce from harmful respirable dusts (click here for an example comparison).

Cyclone Protection

Oversize conductive filters are protected by a metal shroud and cyclone technology. This protects filters from abrasive materials and discharges static buildup to avoid becoming statically bonded to the filters.

Quick Release

Change between accessories quickly and easily with the quick release accessories system.

ACS Filter Cleaning

ACS (Automatic Cleaning System) self–cleans the HEPA filters whilst the machine is in use so you maintain optimum dust free cleaning. Users never remember to shake the filter again (click here for full details).

Longopac

Eliminate dust clouds when emptying the container : use the longopac self–seal bag system to protect users from exposure to dusts considered hazardous to health (click here for full details).
