Industrial Vacuum Cleaner For Silica Dust

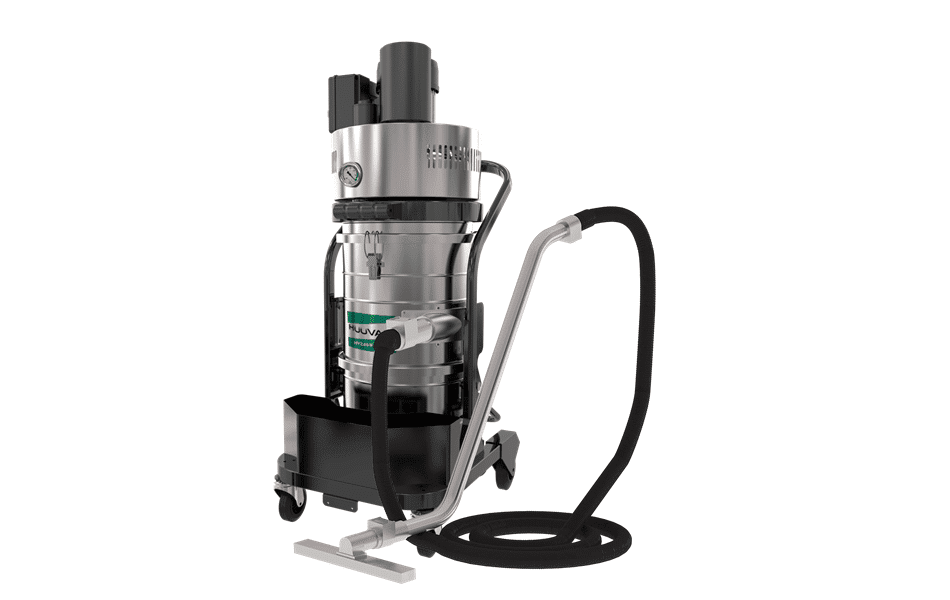

HUUVAN HV200-ACS (C35/Z2-22) 230 Volt, H Class, Atex Rated Industrial Vacuum Cleaner

Make your cleaning tasks easier with the Huuvan HV200 which has rugged build with 230V power rating and ATEX approval. This machine will handle dust, particles and metal filings and is safe to use in explosive atmospheres created by certain dusts, sugars or paint sprays.

SKU: HV200-ACS Categories: ATEX rated Industrial Vacuum Cleaners, Industrial Vacuum Cleaners

DESCRIPTION

ATEX Vacuum Cleaner – Huuvan HV200-ACS C35/Z2-22 H Class

• 240v powered unit for fast and easy connection throughout industry
• Change between accessories quickly and easily with the quick release accessory system

What is Atex?
ATEX Legislation:

“ATEX”, an abbreviation for “ATmospheres EXplosible”, is a set of directives this at are implied to mark up the security and safety of products, equipment, lighting, cameras, walkie-talkies and power tools to be used by operators in potentially explosive environments. The Atex Directive which became law in 2006 stipulates that areas where potentially explosive atmospheres could be present must be classified on the frequency and nature of the explosive atmosphere:

Frequency	Potentially explosive atmosphere composition
		Gas	Dust
	Permanent	Zone 0	Zone 20
	Occasional	Zone 1	Zone 21
	Infrequent	Zone 2	Zone 22

SPECIFICATION

Voltage	230V 50Hz
Filter Shaker System	VCS (Vibrator Cleaning System)
Filter Class	H Class / HEPA
Filter Efficiency	99.995 %
Max Depression	320 mBar
Depression Valve Regulation	220 mBa
Air Flow	320 m3/h
Power	2.0 Kw
Atex Certified	Zone 2 & 22
Atex Rating	II 3GD EEx nA II T4 135°C IP65
Container Capacity (Ltrs)	35
Dimensions (Cm)	62 x 50 x H127
Weight (Kg)	72

FEATURES & BENEFITS

HEPA filter

HEPA H-class filtration collects submicron dusts at 99.995% efficiency, protecting the workforce from harmful respirable dusts (click here for an example comparison).

Cyclone Protection

Oversize conductive filters are protected by a metal shroud and cyclone technology. This protects filters from abrasive materials and discharges static buildup to avoid becoming statically bonded to the filters.

Quick Release

Change between accessories quickly and easily with the quick release accessories system.

ACS Filter Cleaning

ACS (Automatic Cleaning System) self–cleans the HEPA filters whilst the machine is in use so you maintain optimum dust free cleaning. Users never remember to shake the filter again (click here for full details).

Longopac

Eliminate dust clouds when emptying the container : use the longopac self–seal bag system to protect users from exposure to dusts considered hazardous to health (click here for full details).
