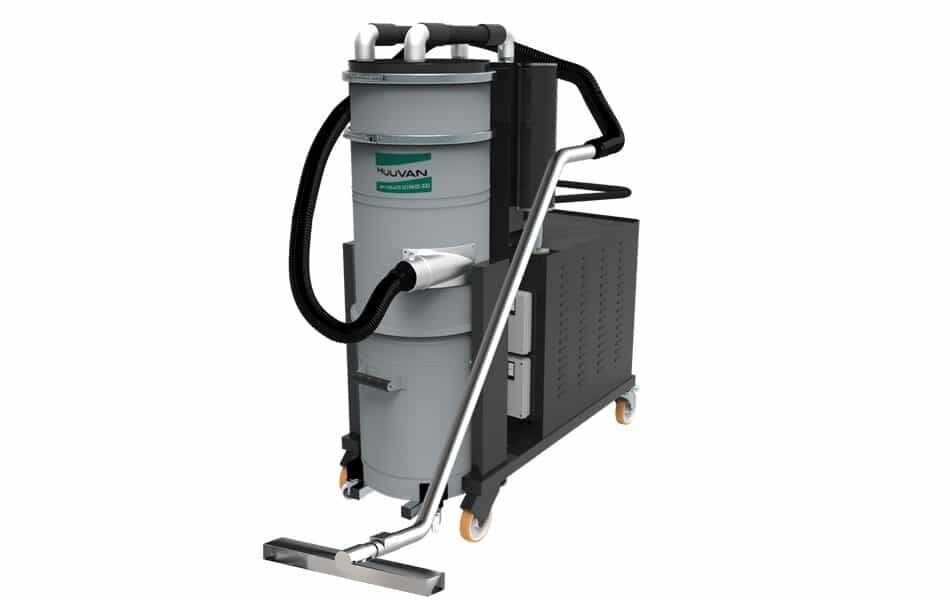

HUUVAN HV1100-ACS (C100/Z2-22) 400 Volt, H Class, Atex Rated Industrial Vacuum Cleaner

Ultra heavy duty industrial vacuum cleaner with ATEX approval. An HV1100 model from Huuvan has a high capacity and rugged build with 3-phase power supply to effortlessly handle dust, particles and metal filings – making keeping your building site or factory clean both easier and quicker.

SKU: HV1100-ACS (C100/Z2-22) Categories: ,


• Ergonomic and industrial design includes a complete cover for the side channel blowers protecting them from damage and reducing exhaust air movement.
• Whether you need high air speed or high air flow, 90mm, 70mm or 50mm accessories are available for different applications.
• Available in parallel configuration for higher airflow or series configuration for better suction of heavy materials or for longer distance cleaning.
• Operate the machine as a stand-alone vacuum, or connect it to a fixed cleaning system for added flexibility.

What is Atex?
ATEX Legislation:

An acronym for Atmosphere Explosive, the Atex Directive which became law in 2006 stipulates that areas where potentially explosive atmospheres could be present must be classified on the frequency and nature of the explosive atmosphere:

Frequency Potentially explosive atmosphere composition
  Gas Dust
Permanent Zone 0 Zone 20
Occasional Zone 1 Zone 21
Infrequent Zone 2 Zone 22


Voltage 400V + 230V 50/60Hz
Filter Shaker System AUTO
Filter Class H Class / HEPA
Filter Efficiency 99.995 %
Max Depression Series Version: 500 mBar
Parallel Version: 320 mBar
Depression Valve Regulation Series Version: 460 mBar
Parallel Version: 260 mBar
Air Flow Series Version: 760 m3/h
Parallel Version: 1,000 m3/h
Power 10.4 Kw
Atex Certified Zone 2 & 22
Atex Rating II 3GD EEx nA II T4
135°C IP65
Container Capacity (Ltrs) 100
Dimensions (Cm) 130 x 65 x H160
Weight (Kg) 300


p benefits1
benefits thick
HEPA filter

HEPA H-class filtration collects submicron dusts at 99.995% efficiency, protecting the workforce from harmful respirable dusts (click here for an example comparison).

p benefits2
benefits thick

Cyclone Protection

Oversize conductive filters are protected by a metal shroud and cyclone technology. This protects filters from abrasive materials and discharges static buildup to avoid becoming statically bonded to the filters.

p benefits5
benefits thick

Quick Release

Change between accessories quickly and easily with the quick release accessories system.

p benefits3
benefits thick

ACS Filter Cleaning

ACS (Automatic Cleaning System) self–cleans the HEPA filters whilst the machine is in use so you maintain optimum dust free cleaning. Users never remember to shake the filter again (click here for full details).

p benefits4
benefits thick


Eliminate dust clouds when emptying the container : use the longopac self–seal bag system to protect users from exposure to dusts considered hazardous to health (click here for full details).

benefits thick
Atex Certified
Choose Atex rated machines for operating in Zone 2 or Zone 22 areas where potentially explosive atmospheres could be present.
benefits thick
Vacuum Turbine
Sturdy side channel blower vacuum turbines can be used for constant 24/7 operation with virtually zero maintenance.
benefits thick
Connect to an interceptor tipper skip for fast bulk collection and added flexibility.
