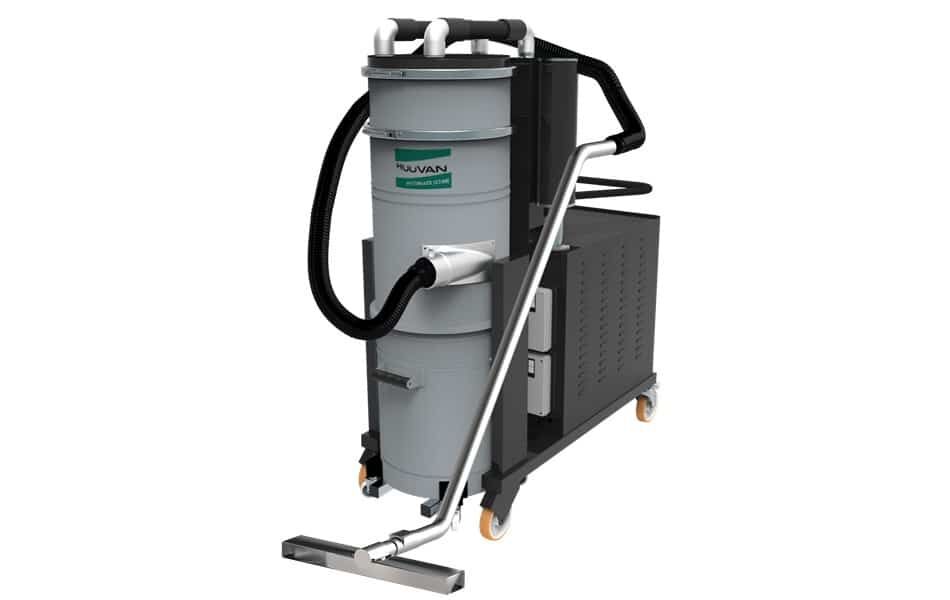

HUUVAN HV1100-ACS (C100) 400 Volt, H Class, Industrial Vacuum Cleaner
This HV1100 model from Huuvan is a rugged heavy duty industrial vacuum cleaner without ATEX certification. It has a 3-phase power supply and effortlessly handles dust, silica particles and metal filings in large volumes making keeping your site or factory clean easier and quicker.
DESCRIPTION
• Ergonomic and industrial design includes a complete cover for the side channel blowers protecting them from damage and reducing exhaust air movement.
• Whether you need high air speed or high air flow, 90mm, 70mm or 50mm accessories are available for different applications.
• Available in parallel configuration for higher airflow or series configuration for better suction of heavy materials or for longer distance cleaning.
• Ergonomic and industrial design includes a complete cover for the side channel blowers protecting them from damage and reducing exhaust air movement.
• Operate the machine as a stand-alone vacuum, or connect it to a fixed cleaning system for added flexibility.
SPECIFICATION
| Voltage | 400V + 230V 50/60Hz |
| Filter Shaker System | AUTO |
| Filter Class | H Class / HEPA |
| Filter Efficiency | 99.995 % |
| Max Depression | Series Version: 500 mBar Parallel Version: 320 mBar |
| Depression Valve Regulation | Series Version: 460 mBar Parallel Version: 260 mBar |
| Air Flow | Series Version: 760 m3/h Parallel Version: 1,000 m3/h |
| Power | 11 Kw |
| Atex Certified | This model is not Atex Certified |
| Atex Rating | This model does not have an Atex Rating |
| Container Capacity (Ltrs) | 100 |
| Dimensions (Cm) | 130 x 65 x H160 |
| Weight (Kg) | 300 |
FEATURES & BENEFITS
HEPA H-class filtration collects submicron dusts at 99.995% efficiency, protecting the workforce from harmful respirable dusts (click here for an example comparison).
Cyclone Protection
Oversize conductive filters are protected by a metal shroud and cyclone technology. This protects filters from abrasive materials and discharges static buildup to avoid becoming statically bonded to the filters.
Quick Release
Change between accessories quickly and easily with the quick release accessories system.
ACS Filter Cleaning
ACS (Automatic Cleaning System) self–cleans the HEPA filters whilst the machine is in use so you maintain optimum dust free cleaning. Users never remember to shake the filter again (click here for full details).
Longopac
Eliminate dust clouds when emptying the container : use the longopac self–seal bag system to protect users from exposure to dusts considered hazardous to health (click here for full details).
